If it ain't Real it ain't Steel!

Frame Group

Frame Group

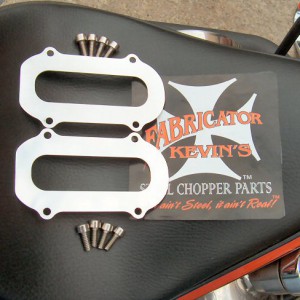

Paughco Axleplate Protectors

Price: $39.00

These stainless steel plates mount to the axleplates on a Paughco frame, and keep the paint from scraping off when you adjust the axle.

The kit includes stainless steel mounting screws, and 39.00 plus 7.00 S&H will get it shipped to your mailbox.

Product in stock
Quantity
Loading Updating cart…

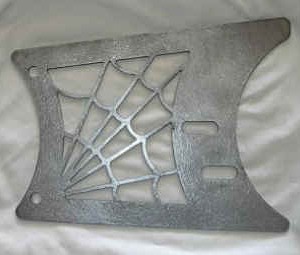

Torque Plates

Price: $65.00

Plates to join your motor to trans, CNC burned out of 1/4″ steel plate.
Available in plain (no cut-outs), or with Maltese cross cut-out, spider web pattern, F.T.F., or just about anything you can dream up!

Even available to join generator motors to late model 4 speeds.

Product in stock
Quantity
Loading Updating cart…

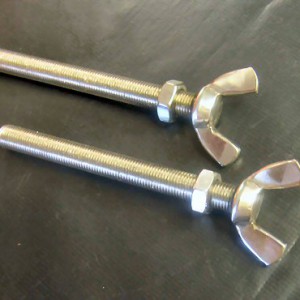

Wingnut Axle Adjusters

Price: $30.00

These axle adjusters are standard 3/8″-24 thread, and 100 percent stainless steel. They come polished with jam nuts. They offer 3 1/2″ of adjustment, and retail for 30.00 plus 7.00 S&H.

Product in stock
Quantity
Loading Updating cart…

Mid Control Mounts

Price: $125.00

These plates are a great start to building your own mid controls, and will work with an open belted Shovel/Evo and a 4 speed trans. Each side is prick-punched for a peg location so that your pegs will be in line on both side of the bike, and you can adjust the location up or down as desired. Laser cut in steel, of course!

Product in stock
Quantity
Loading Updating cart…

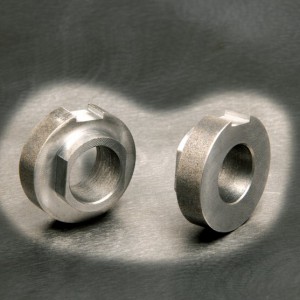

Axle Locators

Price: $44.00

These axle holders will allow you to run your 3/4″ axle in a set of early forged HD axleplates, or in a Paughco frame without using a special axle. Any frame with a 7/8″ axle slot will accept these locators, and give you the option of using a standard 3/4″ axle.

Product in stock
Quantity
Loading Updating cart…

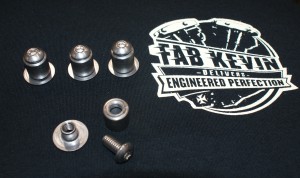

Space Saver Fender Mount Kit

Price: $40.00

This is a new kit, designed to mount on fenders with very little clearance between the inside of the fender and tire. Simply drill a 3/8″ hole in the fender, and insert one of the threaded top-hat style inserts from the inside of the fender. Lightly tack it in place, and the outer bung will then mount to the outside of the fender with the button head screw that is supplied. 3/8″ diameter round stock can then be welded to the outer bung, or flat struts can also be welded to the bung (neither is included)

(1) package includes (4) bungs, (4) top hat threaded insters, and (4) stainless steel button head screws.

$40.00 plus shipping



Product in stock
Quantity
Loading Updating cart…

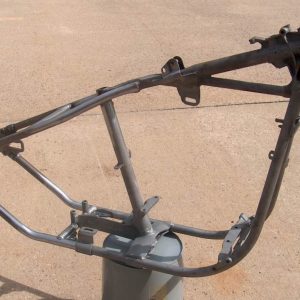

Shovelhead Hardtailing Service!

Price: $0.00

Own a titled ’70-’85 4 speed frame and want to build a nice bobber/chopper out of it? I can help. I will install your frame in my jig, check it to factory specs and correct any inconsistencies, and then build and weld on a hardtail section to mimmick the classic lines of a factory rigid frame. I use cast steel MADE IN USA axleplates that are identicle to stock HD plates, and all of my mandrel bent tubes will fit the frame like they were made for it, because they were.

Kit prices (if you have your own frame jig) are $550.00 plus shipping, and for that price you get a pair of axleplates, all of the pre-bent tubes, all of the machined details and connectors, as well as a drawing illustrating where the axleplates get located, relative to the rest of the frame.

I will install the kit for an additional $550.00, and when you get your frame back – it will look like it came from the factory as a hardtail, not like a cheap add-on. I spend as much time as needed with each frame to make sure my customers are happy when they recieve them.

Shipping is easy, and turn around time is 2 weeks from the time I recieve the frame. Sometimes a little more, sometimes a little less – so call if you want to discuss this option for your bike. Building on a titled frame saves lots of hassles registering the bike, and greatly improves resale values.
Product in stock
Quantity
Loading Updating cart…
